MT-50C Round Labeling Machine With Coding - Labeling machine

Product introduction:

This machine use to label the PET bottle, plastic bottle, glass bottle and metal bottle. It is widely use for foodstuff, beverage, rice and oil, medicine, daily and chemical filed.This machine improve label speed and label quality.
Suitable for different size of adhesive label or adhesive film on all kinds of round bottle,High accuracy and high speed,dispensing & labeling automatically.

Product features:

1.Round bottle, Round tank, Round barrel to self-adhesive labeling.
2. Composed by main body, sending paper, receiving paper, bottle orientation etc parts.
3. Putting the bottle to orientation part by manual and fix the bottle.
4. Small size labeling machine, very easy to operate.

Technical parameters:

Model	MT-50C
Accuracy	±0.5mm
Speed	25 - 50pcs per minute
Available Bottle OD	15~ 120mm
Label Width	8 ~ 150mm
Label Length	15 ~ 315mm
Label Roll ID	76mm
Max. OD of Label Roll	250mm
Products size	Ø20mm-120mm
Label size	≤W150*L230
Power Supply	220/110V 50/60Hz
Coding line	2 or 3 lines
Size	650450450mm
Weight	25kgs

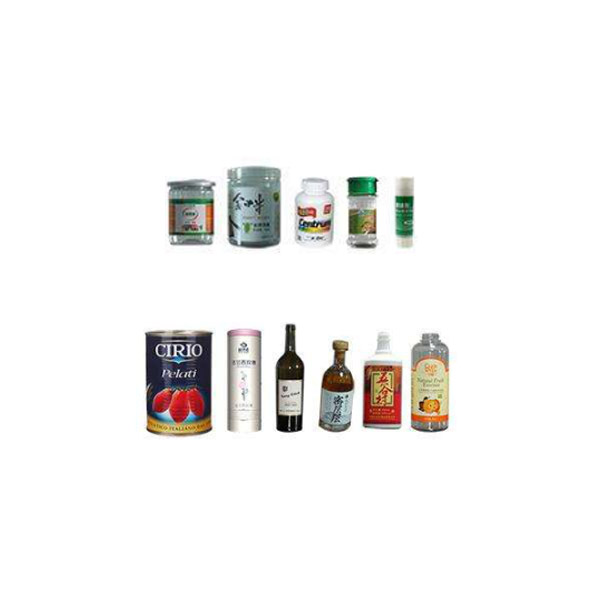

Sample display:
